PB02-PMB

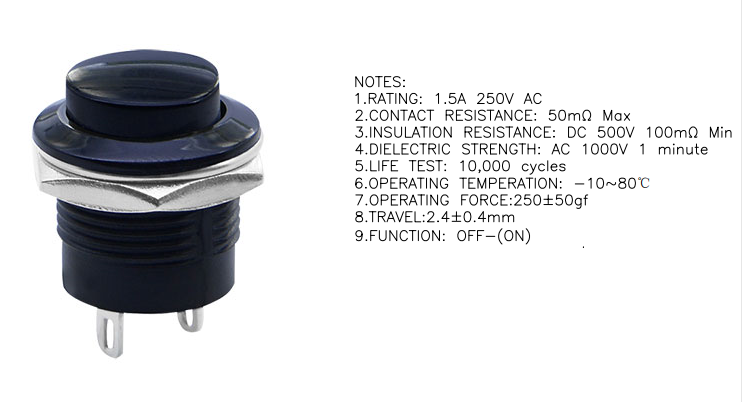

Item: Push button switch
Part Number:PB02-PMB

Specification:

Rating: 1.5A 250V AC
Contact Resistance:50m? Max
Insulation Resistance:DC500V 100m? MIN
Dielectric strength: AC 1000V for 1 minute
Operating Force: 250±50gf
Total Travel: 2.4±0.4mm
Operating Temperature：-10～80℃
Life Cycle: 10,000 Cycle
Function: OFF-(ON)

Application:

Lighting Fixtures
Automated production
Instruments and meters
Audio products
Testing equipment
Electrical toys
